Wrong-Size Air Filters? Do Not Cut Or Stack 16x32x4
Stop before you force it. A filter that has to be bent, trimmed, or wedged into position will not seal against its housing, and a filter that does not seal lets unfiltered air run straight past the media and onto your evaporator coil. Pull the panel back out, measure the interior of the slot to the nearest eighth of an inch, and order to that measurement. Keep a clean, correctly sized filter in the rack until the replacement arrives.
TL;DR
A 16x32x4 filter does not measure 16 by 32 by 4 inches. The panel is 15.50 by 31.50 by 3.63 inches by design, because the rack opening is the 16 by 32 dimension. If yours will not slide in, measure the slot first. Do not cut it, bend it, tape the gap, or run with an empty rack.
Stop before you force it. A panel bent or wedged into place will not seal, and one that does not seal lets unfiltered air run past the media onto your evaporator coil. Measure the slot interior to the nearest eighth of an inch and order to that number.
Key Takeaways
Nominal size is a label, not a measurement. The panel is built undersized so it slides into a 16 by 32 inch opening without binding.
The EPA advises making sure a filter fits snugly so air does not leak around it, and warns against bending or crushing one to fit.
Filterbuy, an American filter manufacturer in Talladega, Alabama, publishes the actual size of its 16x32x4 as 15.50 by 31.50 by 3.63 inches.
A gap around the frame is worse than a dirty filter. Dirty media still filters. An open channel filters nothing.
Why Your 16x32x4 Air Filter Will Not Fit
In most cases, the filter is correct, and the measurement is being read wrong. Every pleated panel in a residential return is a disposable air filter built to a nominal label rather than a measured one, cut undersized so it clears the rack without tearing the media. Filterbuy cuts it in Talladega, and the published dimensions for this size: 16x32x4 Air Filters are 15.50 by 31.50 by 3.63 inches. A tape reading of 15.5 on a box marked 16 is correct.
Not unique to one brand. A 16x20x4 listing carried at Target states an actual size of 15.50 by 19.50 by 3.63 inches, the same adjustments on a different label.
The other two causes are less common. Racks collect debris along the bottom lip and bow after a decade of loading, stopping a correct panel from seating flush. Genuinely mismatched slots are rarest, turning up in older Fort Lauderdale and Pompano Beach homes and condo retrofits where the rack was built on site.

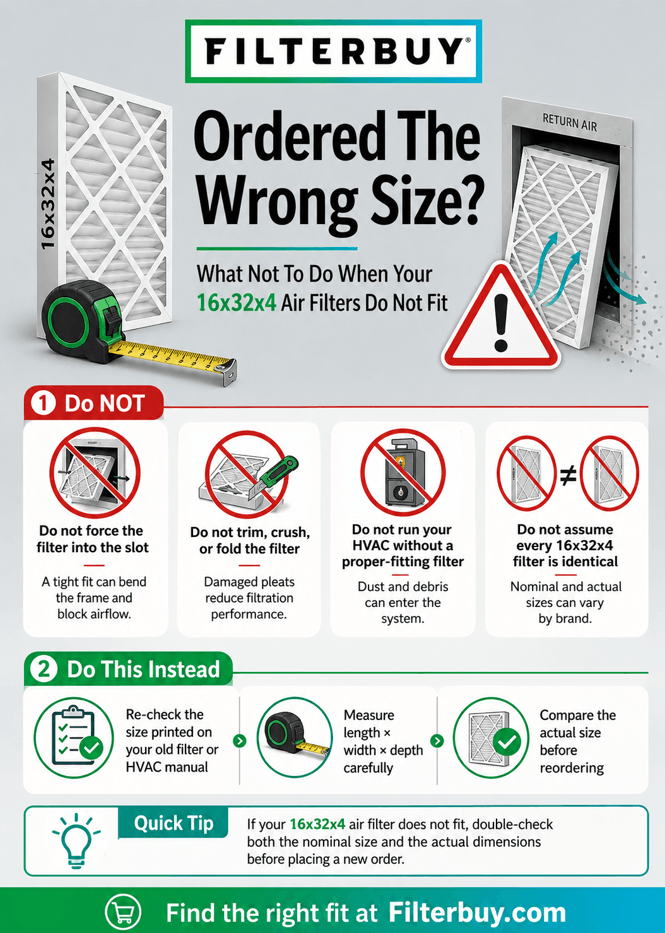

What Not To Do When Your Filter Will Not Go In
Nothing that changes the shape of the filter or the rack counts as a fix. Five common responses each cost more than the filter.
Do not trim or cut it down. The cardboard frame holds the pleats open against airflow. Once cut, the media collapses under blower pressure and opens a bypass channel where you cut.
Do not bend, crush, or wedge it. The EPA states a filter should fit snugly without being bent or crushed. A bowed panel loses its seal along that edge and changes the pressure drop the system was designed around.
Do not run with an empty rack. The Department of Energy notes that obstructed airflow lets dirt settle on the evaporator coil, reducing its ability to absorb heat. An empty rack delivers that dirt directly. It helps to know whether a filter protects your air or your equipment, because the answer is both.
Do not tape the gap. Tape fails in humid return air within weeks and can pull loose into the blower. A rack needing a seal gets gasket material on the housing, installed by a technician.
Do not stack thinner filters. Two 2-inch panels in a 4-inch cabinet each add pressure drop, and the seam between them is its own leak path.
How To Measure Your Filter Slot Correctly
Measure the rack opening, not the old filter. A panel compressed against a rack lip for three months reads false even if it started correct, and the one coming out may have been wrong for years. A cut panel leaves the plant to a controlled tolerance. The rack has been loaded, bumped, and sometimes painted over for a decade. Variance lives in the rack.
Shut the system off at the thermostat and breaker. Measure length and width at the narrowest point, then depth from the front face to the back stop, each to the nearest eighth. Note the airflow arrow before discarding the old panel. Heath has laid out the full filter installation sequence separately.
Should You Keep The Filter Or Send It Back
If the opening measures close to 16 by 32 by 4 inches, keep it. The size is right, and you have a rack problem, not an order problem. If it measures a different nominal size, start the exchange before trying anything else.
That sequence matters. A panel wedged into a rack comes out with crushed pleats or a creased frame, the exact condition most return policies reject. Measure, then decide, then handle the return, checking the window where you bought it. Past the window with a size that fits nothing you own, still do not cut it down. Pass it on sealed.
How To Tell Whether A Seated Filter Is Actually Sealing
A panel that slides in is not automatically one that seals. Four checks tell you, no tools needed.
Look at the downstream face of the frame. The blower-side edge should be close to clean, because dust reaches it only by traveling around the frame rather than through the media. Then read the loading pattern.
Check the rack channel for a dust streak lining up with one side. With the panel closed and the blower running, a correct filter is held against its stop by airflow.
Why A Four-Inch Filter Hides A Bad Fit Longer
A bad fit on a 4-inch panel goes undetected roughly three times longer than on a 1-inch one. A 1-inch filter is replaced every 30 to 60 days, so a poor seat gets caught quickly. A 16x32x4 runs 90 days or more, which is most of the reason people pay for the depth.
In Broward, that quarter is near-continuous cooling, not a shoulder season. The depth that saves you filter changes also buys a longer window in which a bad seal goes unnoticed, which moves all the weight onto the first install.
Choosing The MERV Rating Once The Fit Is Right
A seated MERV 8 panel protects the coil better than a MERV 13 with a half-inch channel around one edge. Four inches of depth gives more surface area than a 1-inch panel, so the cabinet tolerates a higher rating comfortably. Filterbuy builds this size in three ratings, and the MERV 13 build of this size is what most allergy households pick, and the reasoning behind MERV 13 and dust mite allergens carries across sizes. MERV 11 is the middle path, and what a MERV 8 filter actually captures suits more households than most people assume.
When The Slot Really Is A Different Size
If your measurements match no nominal size, three paths work. Order a panel cut to your exact opening, have a contractor rebuild the rack to a standard size, or specify the cabinet size in the quote if the air handler is due for replacement. Do not settle for the closest size. The 16x30x4 size sits two inches short in a 16 by 32 rack, and that is a bypass path, not a tolerance.
“We cut every 16x32x4 panel to 15.50 by 31.50 by 3.63 inches on purpose, because a filter built to its nominal number would bind in the rack and tear its own media going in. Most of the filters that come back to us as the wrong size measure exactly to specification, and what actually changed is the rack.” - Heath Klemish, hvac-repair-broward-county-fl.com writer
Essential Resources
1. U.S. Environmental Protection Agency, Guide to Air Cleaners in the Home
States the fit rule this article rests on. A filter should fit snugly so air does not leak around it, and should not be bent or crushed to fit.
2. U.S. Department of Energy, Air Conditioner Maintenance
Explains what happens downstream of a bypassed filter, including dirt reaching the coil and reducing its heat-absorbing capacity.
3. CDC NIOSH, Ventilation Frequently Asked Questions
Covers the MERV and pressure-drop tradeoff, and states that air leaks produce filter bypass, worsening as the filter loads with dust.
4. Florida Department of Health, Mold
Florida moisture guidance, including when a central system needs a dehumidifier to hold humidity under 60 percent, should be examined.
Supporting Statistics
Air conditioning ran in 88 percent of U.S. households in 2020 and 93 percent in the South Census Region.
U.S. Energy Information Administration, Residential Energy Consumption Survey as reported May 31, 2022.
Typical evaporator coils foul enough to double evaporator pressure drop within 7 to 11 years, far short of a coil’s expected 15 to 30 year life.
Siegel, Walker, and Sherman, Lawrence Berkeley National Laboratory, who conclude that eliminating filter bypass should be standard residential maintenance.
Measured filtration efficiency inside 21 occupied homes did not match the laboratory nominal rating printed on the filter.
In Situ Efficiency Of Filters In Residential Central HVAC Systems National Library of Medicine.
Final Thoughts
The filter is built to a controlled tolerance. The rack is not. When they disagree, the rack is almost always what moved, and homeowners who start there solve this once instead of every season. On a 4-inch size, the stakes sit in the first install, because the next look at that rack is a quarter away.
Frequently Asked Questions
Q: Is A 16x32x4 Filter Really 16 Inches By 32 Inches?
A: No. The nominal label describes the rack opening. The panel measures 15.50 by 31.50 by 3.63 inches, which lets it slide into a 16 by 32 inch slot without binding.
Q: Can I Cut A 16x32x4 Filter Down To Fit A Smaller Slot?
A: No. The cut removes the frame edge holding the pleats open, and the media collapses once the blower runs. You lose the seal and the rated performance at once. Order to the measured opening or have a custom size built.
Q: How Long Can I Run My AC Without A Filter?
A: Treat it as damage accumulating, not time you are allowed. Unfiltered return air deposits dirt on the evaporator coil and reduces its ability to absorb heat.
Q: What Is The Difference Between 16x32x4 And 16x30x4?
A: Two inches of length, which leaves an open channel at one end of the rack. They are not interchangeable. Measure the opening and order to match.
Q: Does A Higher MERV Rating Fix A Loose Filter?
A: No. Rating only affects air passing through the media. If air bypasses the frame, a higher rating changes nothing about what reaches your ducts. Fix the fit first, then choose the rating your system can handle.
Get The Right Size for Your HVAC
Pull your filter tonight, read the nominal size on the frame, then measure the rack opening and write all three numbers on tape inside the access panel. That note ends the guessing on every future order. If the opening matches no standard size, book a Broward technician to assess whether the rack should be rebuilt before the next cooling season.
